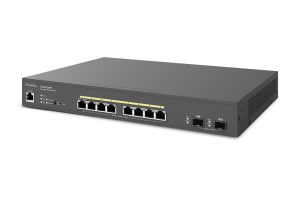

CloudSwitch MGPlus 8 Full PoE

雲端管理型 8埠 240W 2.5Gb PoE+ 及 2埠 SFP+ Multi-Gig 網路交換器

ECS2510FP

EnGenius Cloud Switch Features Cloud-managed Switch Solution

Product Highlight

EnGenius 雲端管理型Layer 2+ Gigabit 2.5Gb 網路交換器 ECS2510FP ，為中小型企業提供易於使用且經濟高效的網路解決方案。憑藉其 8 個 2.5G PoE+ 連接埠和 2 個 10G SFP+ 上行連接埠以及 240W 總功率預算，它可確保頻寬密集型應用的高速數據傳輸。透過零接觸配置和集中式雲端管理，它簡化了網路管理並節省了時間。

8 個 2.5G PoE+ 連接埠，可提高 NAS、工作站或 WiFi 6 AP 的速度

2 個 10G SFP+（光纖）上行連接埠連接到高速 NAS 和服務器，以實現高性能網路

8 個 802.3af/at PoE+ 連接埠，功率預算為 240W

自動配置、集中式雲端管理，以及可視化監控

混合雲網路交換器支援靈活的管理選項，例如EnGenius Cloud 雲端管理或單機運作

R 具備支援基於連接埠/基於MAC的存取控制清單（ACL）風暴控制、DHCP竊聽防護、DOS攻擊預防、802.1X和RADIUS身份驗證等強大安全功能

透過Voice-VLAN 功能針對高品質語音和視訊流量進行優化

Technical Specifications

Port Standards

802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GBase-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports

8×100/1000/2500 Mbps Ports
2x SFP+ Ports

Switching Capacity

80Gbps

SDRAM

512 MB

Flash Memory

128MB

PoE Capable Ports

1-8

Total PoE Budget

240W

Power Source

100 to 240 VAC, 50/60Hz

Physical Interface

System Indicators

Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Port Indicators

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud
Local Web GUI

MAC Address Table

16K

Jumbo frame size

10K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported/

Queue 8

QoS Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding</

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

ECS2510FP Device

Weight: 2.6Kg
Width: 230mm
Length: 330mm
Height: 44mm

Package Contents

1x Cloud Managed Gigabit Switch
1x Product Card
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

Model Comparison

	CloudSwitch MGPlus 8 Full PoE	CloudSwitch L2Plus 24	CloudSwitch L2Plus 24 Full PoE	CloudSwitch L2Plus 24 PoE	CloudSwitch L2Plus 48	CloudSwitch L2Plus 48 Full PoE	CloudSwitch L2Plus 48 PoE	CloudSwitch L2Plus 8 Full PoE	CloudSwitch L2Plus 8 PoE
Model Number	ECS2510FP	ECS1528T	ECS1528FP	ECS1528P	ECS1552	ECS1552FP	ECS1552P	ECS1112FP	ECS1008P
交換器等級	Layer 2+	Layer 2+	Layer 2+	Layer 2+	Layer 2+	Layer 2+	Layer 2+	Layer 2+	Layer 2+
千兆(Gigabit)連接埠	-	24	24	24	48	48	48	10	8
多兆(Multi-G)連接埠	8 x 2.5G	-	-	-	-	-	-	-	-
SFP光纖連接埠	-	-	-	-	-	-	-	2 x 1G	-
SFP+光纖連接埠	2	4	4	4	4	4	4	-	-
RJ45網管介面連接埠	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	-
PoE供電連接埠	Ports 1-8	-	Ports 1 - 24	Ports 1-24	-	Ports 1-48	Ports 1-48	Ports 1-8	Ports 1-8
PoE供電標準	802.3af/at	-	802.3af/at	802.3af/at	-	802.3af/at	802.3af/at	802.3af/at	802.3af/at
PoE總功率預算	240W	-	410W	240W	-	740W	410W	130W	55W
安裝形式	13" 1U	13"1U	19” 1U	19" 1U	19"1U	19” 1U	19" 1U	13” 1U	9.45" (Desktop)
交換能力	80Gbps	128 Gbps	128 Gbps	128 Gbps	176 Gbps	176 Gbps	176 Gbps	24Gbps	16 Gbps
Packet Forwarding Rate	59.52 Mpps	95.23Mpps	95.23Mpps	95.23Mpps	130.95Mpps	130.95Mpps	130.95Mpps	17.856Mpps	11.904Mpps
MAC地址大小	16k	16K	16k	16k	32K	32K	32K	8k	8k
Packet Buffer Memory	512KB	1.5MB	1.5MB	1.5MB	2MB	2MB	2MB	512KB	512KB
Full load Power consumption	270.47 Watts	24.41 Watts	500.46 Watts	297.6 Watts	43.92 Watts	885 Watts	476.3 Watts	152.8 Watts	62.05 Watts
Continuous PoE Power	-	-	Yes	Yes	Yes	Yes	Yes	Yes	Yes
尺寸	330 x 230 x 44 mm	330 x 230 x 44 mm	440 x 260 x 44 mm	440 x 260 x 44 mm	440 x 260 x 44 mm	440 x 310 x 44 mm	440 x 310 x 44 mm	330 x 230 x 44 mm	240 x 105 x 27 mm
雲端管理模式	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
本地管理模式	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
單機運作模式	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
